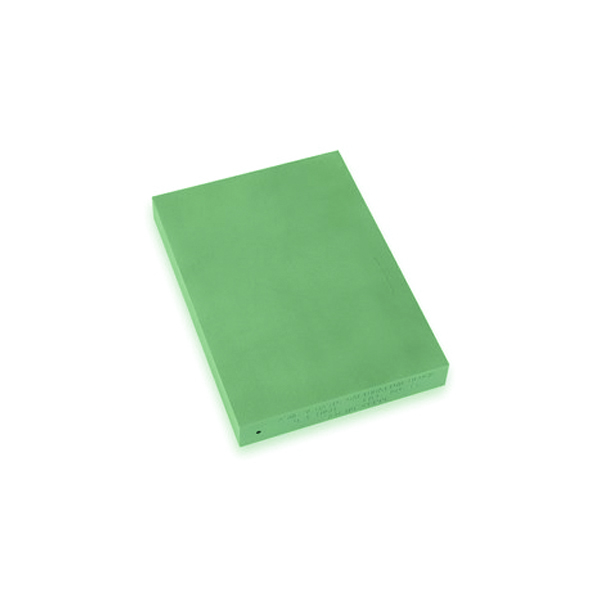

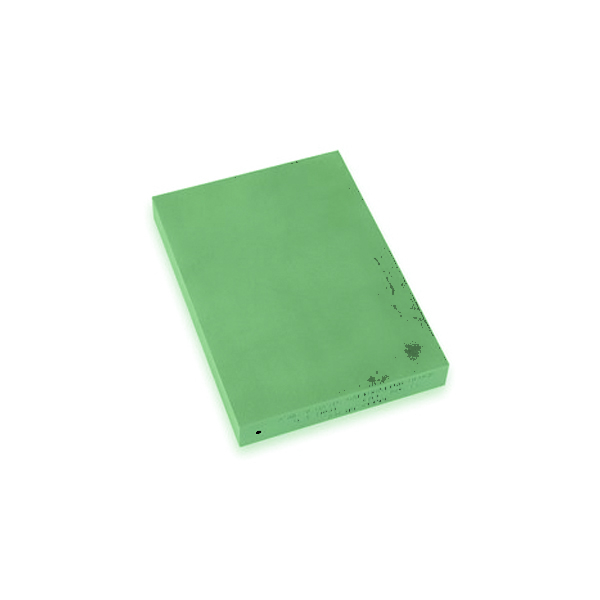

ASME Basic Cal Block, ¾”

Product ID: ALC1-PL-SEC-V

Description:-

Used for establishment of primary reference responses for UT examination of welds. Block contains three side-drilled holes at 1.5″ deep minimum at 3/32″ diameter. Hole locations through the thickness are ¼, ½, and ¾T. Also contains two EDM notches measuring 2%T deep x 1/4″ max wide x 1.0″ long min. ASME Basic Calibration Blocks are intended to be representative of actual components, and therefore do not have the smooth scanning surfaces found on most general-purpose test blocks like the IIW or DSC. Instead, our Basic Calibration Blocks are media blasted on all surfaces to create a rough surface texture that is more characteristic of real-world inspection conditions.

• Dimensions: ¾” thick x 6¼” wide x 4½” long

• Material availability mentioned in this below.
